Portable

2023-06-30419

BACK TO LIST





Features

• Convenient

    The navigation menu contains 6 languages, which can be operated easily.

• Process safety

    4.3" or 7" large size color LCD touch screen, convenient and safe touch operation and debugging

    Large size screen with red flashing alarm, clearly visible from long distances and in dark areas

    Alarm immediately, safe the process

• Data alarm record

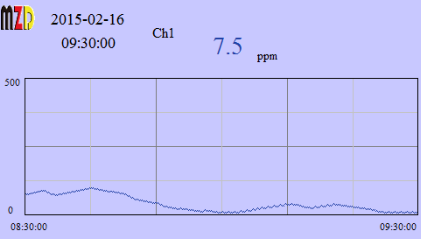

    Real-time data curve display

    Record function for up to 6000 alarms

• Expert calibration function

   Multi-point calibration function up to 9 point

• Powerful self-diagnosis function

    Built-in heartbeat monitoring function and watchdog

    Monitor the status of analyzer and sensors, and promptly remind customers to take necessary maintenance

    High-standard hardware and software security and password protection

• Powerful control function

    High(low) limit control function

    Optional: Timer control(automatic cleaning) function

    Optional: analog PID control function

    Optional: PWM control function

• Flexible fieldbus communication functions for IOT4.0

    Optional fieldbus MODBUS, HART, Foundation Fieldbus FF, PROFIBUS PA, PROFIBUS DP, etc.

bus

• Material: Plastic(Polypropylene,PP)

• Color: Yellow

• Dimensions:  420 x 325 x 180 mm

• IP protection class: IP67


Application

 ASU(Air Separation Unit)

 Chemical, Pharmaceutical industry

 Petroleum and Petrochemical industry

 Metallurgical Industry

 Glass manufacturing

 Semiconductor industry

 Food and beverage industry

 Flare monitoring

 Nuclear,heat treatment, welding protection

● Environmental area monitoring

● Anesthesia, breathing and prenatal care

 Environmental and Process Measurement

Technology (CEM)

● Engine development


Measurement components and ranges

• H2O:      0 ~ 20,000ppb up to 2000ppm

• O2:         0 ~ 10ppm up to 100%

• H2:         0 ~ 0.5% up to 100%

• He:         0 ~ 0.8% up to 100%

• CO2:       0 ~ 3% up to 100%

• N2:         0 ~ 3% up to 100%

• Ar:          0 ~ 3% up to 100%

• SF6:        0 ~ 2% up to 100%

• Ne:         0 ~ 1.5% up to 100%

• Kr:          0 ~ 2% up to 100%

• D2:         0 ~ 0.7% up to 100%

• CO:         0 ~ 200ppm up to 100%

• CO2:       0 ~ 50ppm up to 100%

• CH4:       0 ~ 500ppm up to 100%

• CnHm:    0 ~ 500ppm up to 100%

• N2O:       0 ~ 500ppm up to 100%

• SO2:        0 ~ 50ppm up to 10%

• NO:         0~ 300ppm up to 5,000ppm

• NO2:       0 ~ 50ppm up to 5,000ppm or 0% ~ 5 up to 100%

• O3:          0 ~ 10ppm up to 5,000ppm

• Cl2:          0 ~ 500ppm up to 30%(Vol)

• H2S:         0 ~ 100ppm up to 5,000ppm

• NH3:     0~ 10 up to1000ppm

• HCl:       0~ 50 up to100ppm

• Extinguishing gas (R125):0 ~ 5% up to 100%

• Other gases: on requirement
