Overview
Green ammonia production is a key route for green hydrogen storage and carbon-neutral fuel synthesis. The process imposes strict requirements on hydrogen purity, nitrogen quality, catalyst protection, and emission control.
MZD Analytik GmbH provides integrated process analytical solutions covering the full green ammonia value chain, enabling stable operation, catalyst protection, and regulatory compliance.

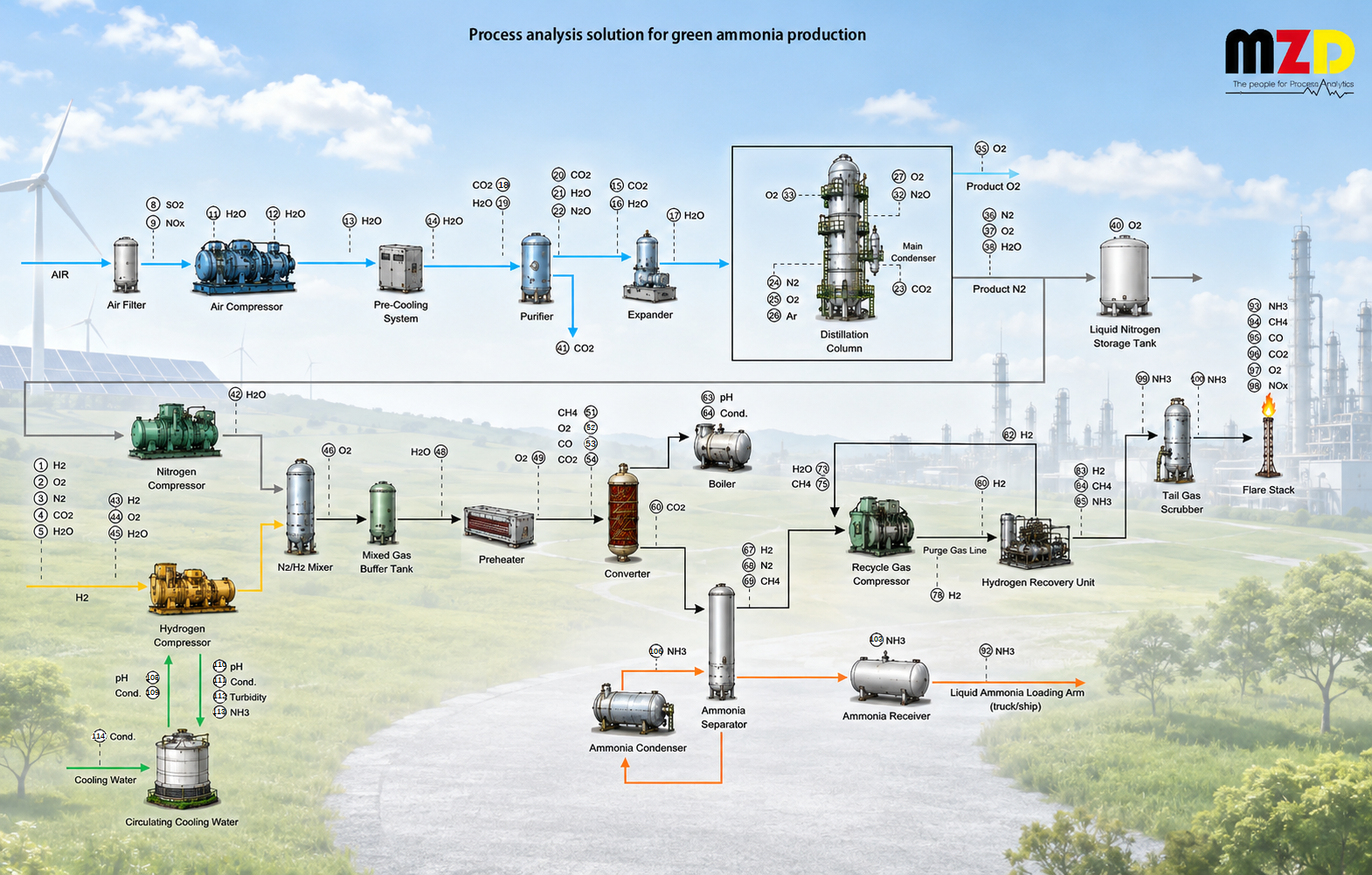

1. Integrated Process Analytical Scheme
Green ammonia production involves a continuous chain of tightly coupled process units, including:
green hydrogen reception and buffering, air separation for nitrogen production, hydrogen compression, gas mixing and syngas preheating, ammonia synthesis reaction, condensation and separation, recycle loop and purge gas recovery, product storage, flare and tail gas treatment, and utility systems.
Across these units, online process analysis focuses on:
Hydrogen purity control and inert gas detection (H₂ / N₂ / O₂ / CO₂)
Nitrogen quality and air separation impurity management (CO₂ / SO₂ / NOx / N₂O / O₂ / Ar)
Catalyst protection in synthesis loop (CO / CO₂ / CH₄ / O₂ / NH₃ slip)
Trace moisture control across all compression, mixing, and recycle stages
H₂/N₂ ratio stability in synthesis and recycle loops
Hydrogen recovery efficiency in purge gas streams
Ammonia emission and flare gas monitoring
Cooling water and utility system chemistry control (pH / conductivity / turbidity)
This integrated analytical architecture ensures stable synthesis performance and long-term catalyst lifetime.
2. Process Measurement Architecture (By Functional Blocks)
Hydrogen & Nitrogen Supply Section
Controls feed gas quality entering the synthesis chain.
Hydrogen purity verification (high-purity range 99.5–100 vol%)
Oxygen trace monitoring for safety and catalyst protection
Nitrogen background impurity control
CO₂ and moisture removal verification in feed streams
Air Separation Unit (ASU)
Ensures nitrogen purity and cryogenic stability.
CO₂ / SO₂ / NOx removal monitoring
Moisture control across compression and cooling stages
Cryogenic blockage prevention (CO₂ / H₂O)
N₂ purity and O₂ / Ar composition control
Liquid phase oxygen/nitrogen quality monitoring
Regeneration gas endpoint detection
Compression & Gas Conditioning
Ensures safe operation before synthesis loop entry.
Hydrogen purity monitoring during compression
Oxygen explosion risk detection
Trace moisture control for corrosion prevention
Dew point stability assurance in gas conditioning
Synthesis Loop Preparation
Controls catalyst entry conditions.
O₂ trace elimination
Moisture control in mixing and preheating stages
Verification of gas composition before reactor entry
Ammonia Synthesis Reaction
Core catalyst protection and stability control.
CO / CO₂ catalyst poisoning monitoring
CH₄ inert gas accumulation control
O₂ trace contamination detection
Leakage indication via CO₂ abnormal increase
Separation, Recycle & Purge System
Optimizes conversion efficiency and hydrogen utilization.
H₂/N₂ ratio monitoring in recycle loop
CH₄ inert gas accumulation tracking
Trace moisture at compressor inlet
Hydrogen recovery from purge gas streams
NH₃ slip monitoring for environmental compliance
Storage, Flare & Tail Gas Treatment
Ensures emission safety and compliance.
NH₃ vapor monitoring in storage systems
Multi-component flare gas analysis (NH₃ / CH₄ / CO / CO₂ / O₂ / NOx)
Scrubber efficiency verification
pH control in absorption systems
Emission compliance monitoring
Utilities & Cooling Water Systems
Maintains auxiliary system stability.
Cooling water pH and conductivity control
Turbidity monitoring for solids control
NH₃ leakage detection in water circuits
Make-up water quality monitoring
3. MZD Analytik Comprehensive Process Analytical Instrumentation Solution
For all measurement points across the green ammonia production chain, MZD Analytik GmbH provides a fully integrated analytical portfolio covering gas composition analysis, trace impurity detection, oxygen measurement, moisture control, gas spectroscopy, and water quality monitoring.
Hydrogen / Nitrogen / Multi-component Gas Analysis
Hydrogen purity analyzer
(ZIM Innovation Program Product)
Ultra-narrow measurement range: 99.5–100 vol%
Multi-component analysis: H₂ / O₂ / N₂ / H₂O
High sensitivity for minute hydrogen purity fluctuations
Alternative to traditional gas chromatography
Fuel-cell-grade hydrogen verification capability
Hydrogen analyzer
(Thermal Conductivity Detector, Innovative Product)
Designed for wet hydrogen process streams
Integrated water vapor compensation algorithm
Without proper moisture compensation, water vapor in gas streams can significantly affect thermal conductivity-based hydrogen measurement, leading to hydrogen reading errors typically in the range of 1–5 vol% H₂ under normal humid conditions, and exceeding ±10% of reading under severe conditions involving high saturation, temperature fluctuations, or partial condensation.
Anti-condensation and dust-resistant design
Stable operation under high humidity conditions
Fast-response industrial hydrogen measurement
Thermal conductivity gas analyzer
Suitable for corrosive gas matrices containing H₂S and SO₂
Measuring cell options: Al₂O₃ (alumina ceramic), glass, quartz
Enhanced corrosion resistance for long-term operation
Reduced sensor degradation under harsh chemical conditions
Optical Oxygen Analyzer
Solid-state fluorescence quenching technology
No consumables required
Long operational lifetime (>5 years)
Built-in atmospheric pressure compensation
Without compensation, a 1% pressure change results in a 1% measurement deviation; daily variations of 2–3%, severe weather 5–7%, and extreme conditions exceeding 11%.
Stable long-term oxygen monitoring
Anti-condensation and dust-resistant design
Galvanic Trace Oxygen Analyzer
0–10 ppm / 0–1000 ppm measurement range
Stable low-level oxygen detection
High-sensitivity safety monitoring
Suitable for hydrogen purification systems
Built-in atmospheric pressure compensation
Preventing signal drift and alarm deviation caused by weather-related pressure changes, ensuring consistent and reliable trace oxygen data.
Galvanic trace oxygen analyzer
0–10 ppm / 0–1000 ppm measurement range
Stable low-level oxygen detection
High-sensitivity safety monitoring
Suitable for hydrogen purification systems
Built-in atmospheric pressure compensation
Preventing signal drift and alarm deviation caused by weather-related pressure changes, ensuring consistent and reliable trace oxygen data.
Paramagnetic oxygen analyzer
Optional back-pressure regulator for stable measurement cell pressure
Optional built-in pressure compensation via real-time pressure sensor correction, Eliminates air-lock effects from blocked or shared vent lines
Pressure compensation accuracy: <1% of reading per 1% pressure change
High cross-interference rejection performance
Fast response and robust measurement design
Suitable for high-purity oxygen and liquid oxygen applications
Laser gas analyzer
High-selectivity ammonia detection
Real-time membrane degradation monitoring
No cross-interference from H₂, H₂O, or CO₂
Fast-response online gas analysis
Ultraviolet gas analyzer
SO₂, NOx, and H₂S measurement
UV absorption spectroscopy for sulfur- and nitrogen-based compounds
High selectivity and sensitivity
Free from CO, CO₂, CH₄, and moisture interference
Infrared gas analyzer
Continuous CO₂ ingress monitoring
Stable infrared optical measurement platform
Integrated temperature and pressure compensation
P₂O₅ Electrolytic Trace Moisture Analyzer
Absolute moisture measurement based on Faraday's law
Drift-free long-term stability
Suitable for H₂ / O₂ / N₂ and syngas applications
Regenerable sensing layer for low operating cost
Ultra-trace moisture monitoring capability
pH / ORP Measurement
(Non-Porous Solid-State Reference Electrode)
Long operational lifetime
Resistant to harsh industrial environments
Stable operation under high salinity and low conductivity conditions
Minimal maintenance requirements
Suitable for electrolysis and wastewater systems
4-Electrode Conductivity Analyzer
Ultrapure water to concentrated electrolyte applications
Automatic temperature compensation
Reduced polarization effects
Stable long-term conductivity monitoring
Suitable for RO, EDI, cooling water, and electrolyte systems
Turbidity / Sludge Concentration Analyzer
Raw water and filtration monitoring
Reliable separation performance evaluation
Industrial wastewater compatibility
Stable long-term suspended solids monitoring
